*Microphone



 Wireless Microphone -H8B/H8A/H8AX-

H8 /BETA58AS

 H8B /SM58S

 H8 /BETA87AS

 H8B /BETA57AS

 H8 /ProS
H8B / BETA58AS H8B / SM58S H8B / BETA87AS H8B / BETA57AS H8B / ProS


H8_switch


  • Selectable RF output : 1mW and 10mW - useful to prevent interference during operations in confined spaces.
  • Audio switch allows local on/off switching of audio(S model only)
  • AA-size alkaline dry cell betteries provide economical operation.
  • Screwdriver is enclosed inside the microphone, so it is always on hand to change channel and other settings.
  • Color code caps(10 colors) for easy identification of channel setting.
  • Battery indicator shows battery condition in addition to power on/off status.
  • Anti-roll ring
  • dbx Type II Noise Reduction for professional use



Specifications : Maxon R8 Series - H8AX / H8A / H8B Wireless Microphone
Model No. H8AX H8A H8B
Carrier Frequency Range 779.125MHz
- 787.875MHz
125KHz steps
single channel		 797.125MHz
- 805.875MHz
125KHz steps
single channel		 806.125MHz
- 809.750MHz
125KHz steps
single channel
Selectable Channels Type AX
(FPU-2 Band)
71 channels		 Type A
(FPU-4 Band)
71 channels		 Type B
30 channels
Type of Emission F3E
Oscillator Crystal-controlled PLL synthesizer
Modulation Reactance System
RF Output 10mW or 1mW
Antenna Built-in 1/4 wavelength whip antenna
Operating Range Approximately 40 - 80 meters(line of sight) from receiving antennas
(with RF output 10mW)
Approximately 20 - 40 meters(line of sight) from receiving antennas
(with RF output 1mW)
Microphones Either SHURE SM58 or Original Pro
Current Consumption 100mA(10mW) 80mA(1mW)
Battery Life 10 hours (RF output : 10mW) or 15 hours (RF output : 1mW)
on AA-size alkaline batteries (continuous operation at 25 degrees centigrade)
5 hours (RF output : 10mW) or 8 hours (RF output : 1mW)
on AA-size alkaline batteries (continuous operation at 0 degrees centigrade)
Low Battery Indicator Appears when battery voltage drops to 1.6V
Battery Requirements Two LR6 (AM3) 1.5V alkaline dry cell batteries
Maximum Input -5dB (0dB = 0.775Vrms)
Operating Temperature 0 - 50 degrees centigrade
LED Indicator BATTERY LOW LED
UNAVAILABLE LED (inside battery compartment)
Weight Main unit : 140g
(not including batteries, microphone, wind screen, adaptor ring)
With SM58 : 312g
(including batteries, SM58 microphone and adaptor ring)
With Pro : 250g
(including batteries, Pro microphone and adaptor ring)
Dimensions Main unit : 32(diameter) x 160(length) mm
(not including microphone, wind screen, adaptor ring)
With SM58 : 52(diameter) x 235(length) mm
(including SM58 microphone, adaptor ring)
With Pro : 51(diameter) x 236(length) mm
(including Pro microphone, adaptor ring)
Accessories SHURE SM58 microphone unit
Original Pro microphone unit
Accessories
* Microphone type is selectable as per user's request
Two 1.5V LR6 alkaline batteries
Special microphone holder MH8
Special plastic driver
Special carrying case
User's Guide
Warranty Certificate
Technical Standard Conformation Certificate
(original copy)		 -
Application form for radio station license
(for land-based mobile station)		 -








*Dual Receiver

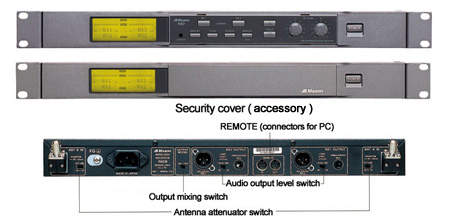

 Dual Receiver -R8DB/R8DA/R8DAX-


R8D
R8DB

  • Large backlit LCD display provides easy viewing even in the dark.Two titles can be assigned to each receiver. Assign performer name and part name for quick identification when required.
  • Key lock to prevent misoperation. In addition, security cover for double protection.
  • Antenna attenuator to adjust antenna sensitivity in accordance with the service area.
  • dbx Noise Reduction for dramatically improved sound quality.
  • Dynamic range of more than 103dB.


Specifications : Maxon R8DAX / R8DA / R8DB Dual Receiver
Model No. R8DAX R8DA R8DB
Frequency
Range		 779.125MHz
- 787.875MHz
125KHz steps
Two channels		 797.125MHz
- 805.875MHz
125KHz steps
Two channels		 806.125MHz
- 809.750MHz
125KHz steps
Two channels
Receiving
System		 Double super heterodyne / True diversity
Type of
Reception		 F3E
Antenna Input Two 50 ohm BNC-J connectors(A, B)
9V DC 25mA (maximum)
external antenna phantom power output
Antenna Attenuator 0dB/-10dB/-20dB
Antenna Type Supplied 1/2 wavelength dipole antenna(CR493N)
Optional :
EA802AX(portable type)
ANW8AX(fixed type)
EA801AX(fixed type)		 Optional :
EA802AB(portable type)
ANW8AB(fixed type)
EA801AB(fixed type)
Oscillator Crystal-controlled PLL synthesizer
RF Sensitivity 21dB micro V (S/N = 60dB min.)
(with AF1KHz, +-20KHz FM)
Squelch
Sensitivity		 18dB micro V
Tone
Frequency		 38.4KHz
Dynamic Range 103dB min.
(IHF-A compensation, frequency deviation : +-40KHz)
Residual
Noise		 -93dBm max. (IHF-A)
T.H.D. 0.5% max. (IHF-A, frequency deviation : +-10KHz)
Frequency
Response		 40Hz - 15,000Hz (+-3dB)
Compander dbx Type II
Balanced
Output		 -20dBm/-60dBm 600 ohm XLR-3-32 connector
Unbalanced
Output		 -20dB/-60dB 5K ohm Standard 1/4 inch phone jack
(0dB = 0.775Vrms)
Display RF Level Meter x 2
AF Level Meter x 2
Diversity A/B x 2
Channel x 2
Title / Frequency x 2
Key Lock
Remote Indicator
Mute Indicator
Antenna Attenuator
Output Level
Output Mixing
Power Supply
Front Panel RX1 Key
RX2 Key
DISPLAY Key
TITLE Key
STATUS Key
REMOTE/LOCK Key
VALUE UP Key
VALUE DOWN Key
AF LEVEL1 Volume
AF LEVEL2 Volume
POWER Switch
CONTRAST Adjuster
Rear Panel Antenna A Input Connector
Antenna B Input Connector
Antenna Attenuator Switch x 2
RX1 BALANCED OUTPUT Connector
RX2 BALANCED OUTPUT Connector
RX1 UNBALANCED OUTPUT Jack
RX2 UNBALANCED OUTPUT Jack
REMOTE IN Connector
REMOTE OUT Connector
OUTPUT MIXING Switch
AC Power Plug Inlet
FG Terminal
Operating
Temperature		 0 - 50 degrees centigrade
Power Supply AC100V 50/60Hz

AC100V - AC240V
Voltage Sensing Switching Power Supply
Power
Consumption		 13W / AC100V
Dimensions 479(W) x 44(H) x 213(D) mm (main unit only)
Weight 2.5Kg (main unit only)
Accessories Two 1/2 wavelength dipole antennas (CR493N)
Power cord
Eight screws (M2.6 x 6mm)
for BNC connector replacement
User's Guide
Warranty certificate








*Transmitter



Wireless Transmitter -T8/T8M Series-

T8
T8M
T8B T8BM



  • The compact configuration is designed with ease of wear in mind.
  • Mic connector does not protrude from the transmitter so it does not get in the way.
  • Selectable RF output : 1mW and 10mW - useful to prevent interference during operations in confined spaces.
  • AA-size alkaline dry cell betteries provide economical operation.
  • Screwdriver is enclosed inside the transmitter, so it is always on hand to change channel and other settings.
  • Battery indicator shows battery condition in addition to power on/off status.
  • Belt clip can be rotated at 90 degree angles or removed entirely.
  • Rotary antenna swings out 180 degrees.
  • Battery cover release lever for secure cover lock.
  • dbx Type II Noise Reduction for professional use




Specifications : Maxon R8 Series - T8AX / T8A / T8B Wireless Transmitter
Model No. T8AX T8A T8B
Carrier Frequency
Range		 779.125MHz - 787.875MHz
125KHz steps
single channel		 797.125MHz - 805.875MHz
125KHz steps
single channel		 806.125MHz - 809.750MHz
125KHz steps
single channel
Selectable
Channels		 Type AX
(FPU-2 Band)
71 channels		 Type A
(FPU-4 Band)
71 channels		 Type B
30 channels
Type of Emission F3E
Oscillator Crystal-controlled PLL synthesizer
Modulation Reactance system
RF Output 10mW or 1mW
Antenna 1/4 wavelength whip antenna
Operating Range Approximately 40 - 80 meters(line of sight) from receiving antennas
(with RF output 10mW)
Approximately 20 - 40 meters(line of sight) from receiving antennas
(with RF output 1mW)
Microphones Either SENNHEISER MKE-2 or Original ECM40 can be supplied
Input Connector HIROSE 6-pin
(microphone connector : HR10A-7P-6S)
Current Consumption 100mA(10mW) 80mA(1mW)
Battery Life 10 hours (RF output : 10mW) or 15 hours (RF output : 1mW) on AA-size alkaline batteries (continuous operation at 25 degrees centigrade)
5 hours (RF output : 10mW) or 8 hours (RF output : 1mW) on AA-size alkaline batteries (continuous operation at 0 degrees centigrade)
Low Battery Indicator Appears when battery voltage drops to 1.6V
Battery Requirements Two LR6 1.5V alkaline dry cell batteries
Maximum Input -5dB(microphone input)
+10dB(instrument input)
(0dB = 0.775 Vrms)
Operating Temperature 0 - 50 degrees centigrade
LED Indicator BATTERY LOW LED
UNAVAILABLE LED(inside battery compartment)
Weight 140g
(main unit only, not including batteries, microphones and cables)
Dimensions 62(W) x 107(H) x 19(D) mm
(not including connectors/microphones, antennas, clips,
and other protruding items)
Accessories

* Microphone type is selectable
as per user's request		 SENNHEISER MKE-2 lavalier type microphone
(Microphone and cable color : black)
MZW2MB metal wind guard, MZQ2A tie pin holder clip
Original ECM40 lavalier type microphone
(Microphone and cable color : black)
Tie pin holder clip
Two 1.5V LR6 alkaline dry cell batteries
Special plastic screwdriver
Special carrying case
User's Guide
Warranty Certificate
Technical Standard Conformation
Certificate(original copy)		 -
Application form for radio station license
(for land-based mobile station)		 -








*Antenna Distributor

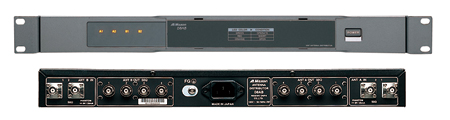

 Antenna Distributor -D8AB/D8AX-


D8AB
D8AB

  • Up to four R8 Series receivers can be connected along with either two or four antennas.
  • Antenna indicator on the front panel to check the current connection status of antenna and antenna cables.
  • The security cover hides the front panel controls to provide security and good look, especially when the unit is mounted on a rack.


Specifications : Maxon D8 Series - D8AX / D8AB Antenna Distributor
Model No. D8AX D8AB
Type Type AX(FPU-2 Band) Type A(FPU-4 Band)
/ Type B
Frequency Range 779MHz - 788MHz 797MHz - 810MHz
Distributions Distributor A : Antenna A In 1-2, Antenna A Out 1 - 4
Distributor B: Antenna B In 1-2, Antenna B Out 1 - 4
RF Gain 0dB +-2dB max.
Noise Figure 10dB max.
Antenna Input Four 50 ohm BNC-J connectors (A, B)
9V DC 25mA(maximum)
external antenna phantom power output
Antenna Output Eight 50 ohm BNC-J connectors (four A, four B)
Maximum Input Level 110dB micro V
Operating Temperature 0 - 50 degrees centigrade
Power Supply AC100V 50/60Hz

AC100V - AC240V
Voltage Sensing Switching Power Supply
Power Consumption 8W / AC100V
Dimensions 479(W) x 44(H) x 213(D) mm
(main unit only, not including connectors,
knobs, rubber feet, power cord and other protruding parts)
Weight 2.4Kg
Accessories Power cord
User's Guide
Warranty Certificate








*Active Powered Antenna



Active Powered Antenna ANW8 Series




ANW8

Specifications : Maxon Wall Mount Powered Antenna ANW8AX/ANW8AB
 Model No. ANW8AX ANW8AB
 Type For Type AX For Type A and Type B
 Frequency Range 779MHz - 788MHz 794MHz - 810MHz
 Antenna 1/2 wavelength dipole
 Antenna +8dB(dipole ratio including booster gain)
 Controls Attenuator Switch 0dB/-10dB/-20dB
 Indicator Phantom power LED
 V.S.W.R 2.6 max.
 Antenna Output 50 ohm BNC-J connector
 Operating Temperature 0 - 50 degrees centigrade
 Power Supply 7 - 12 V DC 20mA max.(at DC8V)
Supplied from receiver or distributor main antenna connector
 Dimensions 70(W) x 120(H) x 110(D) mm
 Weight 300g
 Installation Hole Pitch 83.5mm


  • Active powered antenna for more reliable wireless system operation
  • Supports electrical box installation
  • Dipole antenna with built-in booster amplifier
  • 0dB/-10dB/-20dB attenuator for reduction of interference
  • Equipped with LED to check phantom power supply


Active Powered Antenna EA802 Series
EA802

Specifications : Maxon Portable Powered Antenna EA802AX / EA802AB
 Model No. EA802AX EA802AB
 Type For Type AX For Type A and Type B
 Frequency Range 779MHz - 788MHz 794MHz - 810MHz
 Antenna 1/2 wavelength dipole(CR493BNC)
 Antenna Input 50 ohm BNC-J connector
 Relative Gain +8dB(dipole ratio including booster gain)
 Control Attenuator Switch 0dB/-10dB/-20dB
 Indicator Phantom power LED
 V.S.W.R 2.6 max.
 Antenna Output 50 ohm BNC-J connector
 Operating Temperature 0 - 50 degrees centigrade
 Power Supply 7 - 12 V DC 20mA max.(at DC8V)
Supplied from receiver or distributor main antenna connector
 Dimensions 82(W) x 150(H) x 31(D) mm
82(W) x 350(H) x 31(D) mm (including antenna)
 Weight 400g(including antenna)
 Microphone Stand
 Installation Screws		 5/8 inch, 27UNS(SHURE type)


  • Active powered antenna for more reliable wireless system operation
  • Supports microphone stand installation
  • Dipole antenna with built-in booster amplifier
  • 0dB/-10dB/-20dB attenuator for reduction of interference
  • Equipped with LED to check phantom power supply







*Price List



 Wireless System R8 Series -Standard Retail Price-


Currency : JPY
*Price exclusive of tax
type A

type B
Type AX
Type AX  ANW8AX  35,000  (Type AX)Wall Mount Powered Antenna
 D8AX  120,000  (Type AX)Antenna Distributor
 EA802AX  60,000  (Type AX)Wall Mount Powered Antenna
 H8AX/Pro  100,000  (Type AX)Wireless Microphone/Pro
 H8AX/ProS  100,000  (Type AX)Wireless Microphone/ProS
 H8AX/SM58  120,000  (Type AX)Wireless Microphone/SM58
 H8AX/SM58S  120,000  (Type AX)Wireless Microphone/SM58S
 H8AX/BETA58A  160,000  (Type AX)Wireless Microphone/BETA58A
 H8AX/BETA58AS  160,000  (Type AX)Wireless Microphone/BETA58AS
 H8AX/BETA87A  190,000  (Type AX)Wireless Microphone/BETA87A
 H8AX/BETA87AS  190,000  (Type AX)Wireless Microphone/BETA87AS
 H8AX/BETA57A  160,000  (Type AX)Wireless Microphone/BETA57A
 H8AX/BETA57AS  160,000  (Type AX)Wireless Microphone/BETA57AS
 R8DAX  240,000  (Type AX)Dual Receiver
 T8AX  105,000  (Type AX)Wireless Transmitter
 T8AX/MKE2  160,000  (Type AX)Wireless Transmitter /MKE2
 T8AX/MKE2NB2  181,000  (Type AX)Wireless Transmitter /MKE2NB2
 T8AX/MKE102  172,000  (Type AX)Wireless Transmitter /MKE102
 T8AX/MKE104  190,000  (Type AX)Wireless Transmitter /MKE104
 T8AX/COS11  195,000  (Type AX)Wireless Transmitter /COS11
 T8AX/E40  115,000  (Type AX)Wireless Transmitter /E40
 T8AX/C420  149,000  (Type AX)Wireless Transmitter /C420
 T8AX/C419  144,000  (Type AX)Wireless Transmitter /C419
 T8AX/GC1  115,000  (Type AX)Wireless Transmitter /GC1
 T8AX/XLR1  119,000  (Type AX)Wireless Transmitter /XLR1
 T8AX/4060  200,000  (Type AX)Wireless Transmitter /4060
 T8AX/4061  200,000  (Type AX)Wireless Transmitter /4061
 T8AX/4062  220,000  (Type AX)Wireless Transmitter /4062
 T8AX/4065  235,000  (Type AX)Wireless Transmitter /4065
 T8AX/4066  245,000  (Type AX)Wireless Transmitter /4066
 T8AXM  175,000  (Type AX)Wireless Transmitter MetalBody
 T8AXM/MKE2  220,000  (Type AX)Wireless Transmitter MetalBody/MKE2
 T8AXM/MKE2NB2  245,000  (Type AX)Wireless Transmitter MetalBody/MKE2NB2
 T8AXM/MKE102  240,000  (Type AX)Wireless Transmitter MetalBody/MKE102
 T8AXM/MKE104  255,000  (Type AX)Wireless Transmitter MetalBody/MKE104
 T8AXM/COS11  265,000  (Type AX)Wireless Transmitter MetalBody/COS11
 T8AXM/E40  185,000  (Type AX)Wireless Transmitter MetalBody/E40
 T8AXM/C420  219,000  (Type AX)Wireless Transmitter MetalBody/C420
 T8AXM/C419  214,000  (Type AX)Wireless Transmitter MetalBody/C419
 T8AXM/GC1  185,000  (Type AX)Wireless Transmitter MetalBody/GC1
 T8AXM/XLR1  185,000  (Type AX)Wireless Transmitter MetalBody/XLR1
 T8AXM/4060  270,000  (Type AX)Wireless Transmitter MetalBody/4060
 T8AXM/4061  270,000  (Type AX)Wireless Transmitter MetalBody/4061
 T8AXM/4062  290,000  (Type AX)Wireless Transmitter MetalBody/4062
 T8AXM/4065  305,000  (Type AX)Wireless Transmitter MetalBody/4065
 T8AXM/4066  315,000  (Type AX)Wireless Transmitter MetalBody/4066
pricelist top

type B
Type A
Type A  ANW8AB  35,000  (Type A)(Type B)Wall Mount Powered Antenna
 D8AB  100,000  (Type A)(Type B)Antenna Distributor
 EA802AB  60,000  (Type A)(Type B)Wall Mount Powered Antenna
 H8A/Pro  100,000  (Type A)Wireless Microphone/Pro
 H8A/ProS  100,000  (Type A)Wireless Microphone/ProS
 H8A/SM58  120,000  (Type A)Wireless Microphone/SM58
 H8A/SM58S  120,000  (Type A)Wireless Microphone/SM58S
 H8A/BETA58A  160,000  (Type A)Wireless Microphone/BETA58A
 H8A/BETA58AS  160,000  (Type A)Wireless Microphone/BETA58AS
 H8A/BETA87A  190,000  (Type A)Wireless Microphone/BETA87A
 H8A/BETA87AS  190,000  (Type A)Wireless Microphone/BETA87AS
 H8A/BETA57A  160,000  (Type A)Wireless Microphone/BETA57A
 H8A/BETA57AS  160,000  (Type A)Wireless Microphone/BETA57AS
 R8DA  240,000  (Type A)Dual Receiver
 T8X  105,000  (Type A)Wireless Transmitter
 T8A/MKE2  160,000  (Type A)Wireless Transmitter /MKE2
 T8A/MKE2NB2  181,000  (Type A)Wireless Transmitter /MKE2NB2
 T8A/MKE102  172,000  (Type A)Wireless Transmitter /MKE102
 T8A/MKE104  190,000  (Type A)Wireless Transmitter /MKE104
 T8A/COS11  195,000  (Type A)Wireless Transmitter /COS11
 T8A/E40  115,000  (Type A)Wireless Transmitter /E40
 T8A/C420  149,000  (Type A)Wireless Transmitter /C420
 T8A/C419  144,000  (Type A)Wireless Transmitter /C419
 T8A/GC1  115,000  (Type A)Wireless Transmitter /GC1
 T8A/XLR1  119,000  (Type A)Wireless Transmitter /XLR1
 T8A/4060  200,000  (Type A)Wireless Transmitter /4060
 T8A/4061  200,000  (Type A)Wireless Transmitter /4061
 T8A/4062  220,000  (Type A)Wireless Transmitter /4062
 T8A/4065  235,000  (Type A)Wireless Transmitter /4065
 T8A/4066  245,000  (Type A)Wireless Transmitter /4066
 T8AM  175,000  (Type A)Wireless Transmitter MetalBody
 T8AM/MKE2  220,000  (Type A)Wireless Transmitter MetalBody/MKE2
 T8AM/MKE2NB2  245,000  (Type A)Wireless Transmitter MetalBody/MKE2NB2
 T8AM/MKE102  240,000  (Type A)Wireless Transmitter MetalBody/MKE102
 T8AM/MKE104  255,000  (Type A)Wireless Transmitter MetalBody/MKE104
 T8AM/COS11  265,000  (Type A)Wireless Transmitter MetalBody/COS11
 T8AM/E40  185,000  (Type A)Wireless Transmitter MetalBody/E40
 T8AM/C420  219,000  (Type A)Wireless Transmitter MetalBody/C420
 T8AM/C419  214,000  (Type A)Wireless Transmitter MetalBody/C419
 T8AM/GC1  185,000  (Type A)Wireless Transmitter MetalBody/GC1
 T8AM/XLR1  185,000  (Type A)Wireless Transmitter MetalBody/XLR1
 T8AM/4060  270,000  (Type A)Wireless Transmitter MetalBody/4060
 T8AM/4061  270,000  (Type A)Wireless Transmitter MetalBody/4061
 T8AM/4062  290,000  (Type A)Wireless Transmitter MetalBody/4062
 T8AM/4065  305,000  (Type A)Wireless Transmitter MetalBody/4065
 T8AM/4066  315,000  (Type A)Wireless Transmitter MetalBody/4066
pricelist top
Type B
Type B  ANW8AB  35,000  (Type A)(Type B)Wall Mount Powered Antenna
 D8AB  100,000  (Type A)(Type B)Antenna Distributor
 EA802AB  60,000  (Type A)(Type B)Wall Mount Powered Antenna
 H8B/Pro  80,000  (Type B)Wireless Microphone/Pro
 H8B/ProS  80,000  (Type B)Wireless Microphone/ProS
 H8B/SM58  100,000  (Type B)Wireless Microphone/SM58
 H8B/SM58S  100,000  (Type B)Wireless Microphone/SM58S
 H8B/BETA58A  140,000  (Type B)Wireless Microphone/BETA58A
 H8B/BETA58AS  140,000  (Type B)Wireless Microphone/BETA58AS
 H8B/BETA87A  170,000  (Type B)Wireless Microphone/BETA87A
 H8B/BETA87AS  170,000  (Type B)Wireless Microphone/BETA87AS
 H8B/BETA57A  140,000  (Type B)Wireless Microphone/BETA57A
 H8B/BETA57AS  140,000  (Type B)Wireless Microphone/BETA57AS
 R8DB  200,000  (Type B)Dual Receiver
 T8B  85,000  (Type B)Wireless Transmitter
 T8B/MKE2  130,000  (Type B)Wireless Transmitter /MKE2
 T8B/MKE2NB2  161,000  (Type B)Wireless Transmitter /MKE2NB2
 T8B/MKE102  152,000  (Type B)Wireless Transmitter /MKE102
 T8B/MKE104  170,000  (Type B)Wireless Transmitter /MKE104
 T8B/COS11  175,000  (Type B)Wireless Transmitter /COS11
 T8B/E40  95,000  (Type B)Wireless Transmitter /E40
 T8B/C420  129,000  (Type B)Wireless Transmitter /C420
 T8B/C419  124,000  (Type B)Wireless Transmitter /C419
 T8B/GC1  95,000  (Type B)Wireless Transmitter /GC1
 T8B/XLR1  99,000  (Type B)Wireless Transmitter /XLR1
 T8B/4060  180,000  (Type B)Wireless Transmitter /4060
 T8B/4061  180,000  (Type B)Wireless Transmitter /4061
 T8B/4062  200,000  (Type B)Wireless Transmitter /4062
 T8B/4065  215,000  (Type B)Wireless Transmitter /4065
 T8B/4066  225,000  (Type B)Wireless Transmitter /4066
 T8BM  155,000  (Type B)Wireless Transmitter MetalBody
 T8BM/MKE2  200,000  (Type B)Wireless Transmitter MetalBody/MKE2
 T8BM/MKE2NB2  225,000  (Type B)Wireless Transmitter MetalBody/MKE2NB2
 T8BM/MKE102  220,000  (Type B)Wireless Transmitter MetalBody/MKE102
 T8BM/MKE104  235,000  (Type B)Wireless Transmitter MetalBody/MKE104
 T8BM/COS11  245,000  (Type B)Wireless Transmitter MetalBody/COS11
 T8BM/E40  165,000  (Type B)Wireless Transmitter MetalBody/E40
 T8BM/C420  199,000  (Type B)Wireless Transmitter MetalBody/C420
 T8BM/C419  194,000  (Type B)Wireless Transmitter MetalBody/C419
 T8BM/GC1  165,000  (Type B)Wireless Transmitter MetalBody/GC1
 T8BM/XLR1  165,000  (Type B)Wireless Transmitter MetalBody/XLR1
 T8BM/4060  250,000  (Type B)Wireless Transmitter MetalBody/4060
 T8BM/4061  250,000  (Type B)Wireless Transmitter MetalBody/4061
 T8BM/4062  270,000  (Type B)Wireless Transmitter MetalBody/4062
 T8BM/4065  285,000  (Type B)Wireless Transmitter MetalBody/4065
 T8BM/4066  295,000  (Type B)Wireless Transmitter MetalBody/4066
Common  C1U  49,000  Special Rack Case
 GC1  12,000  Guitar Cable
 MH8  3,000  Mic Holder
 W10  12,000  Antenna Cable(10m)
 W30  18,000  Antenna Cable(30m)
 WR6  4,000  Antenna Distributor Cable(0.6m)
 WSM ver1.0  198,000  WSM for Win95


pricelist top











 ▶Page Top
 ▶Microphone
 ▶Dual Receiver
 ▶Transmitter
 ▶Antenna Distributor
 ▶Active Powered Antenna
 ▶Price List






e-mail  sales@maxon.co.jp


© 1974 NISSHIN ONPA CO., LTD.
